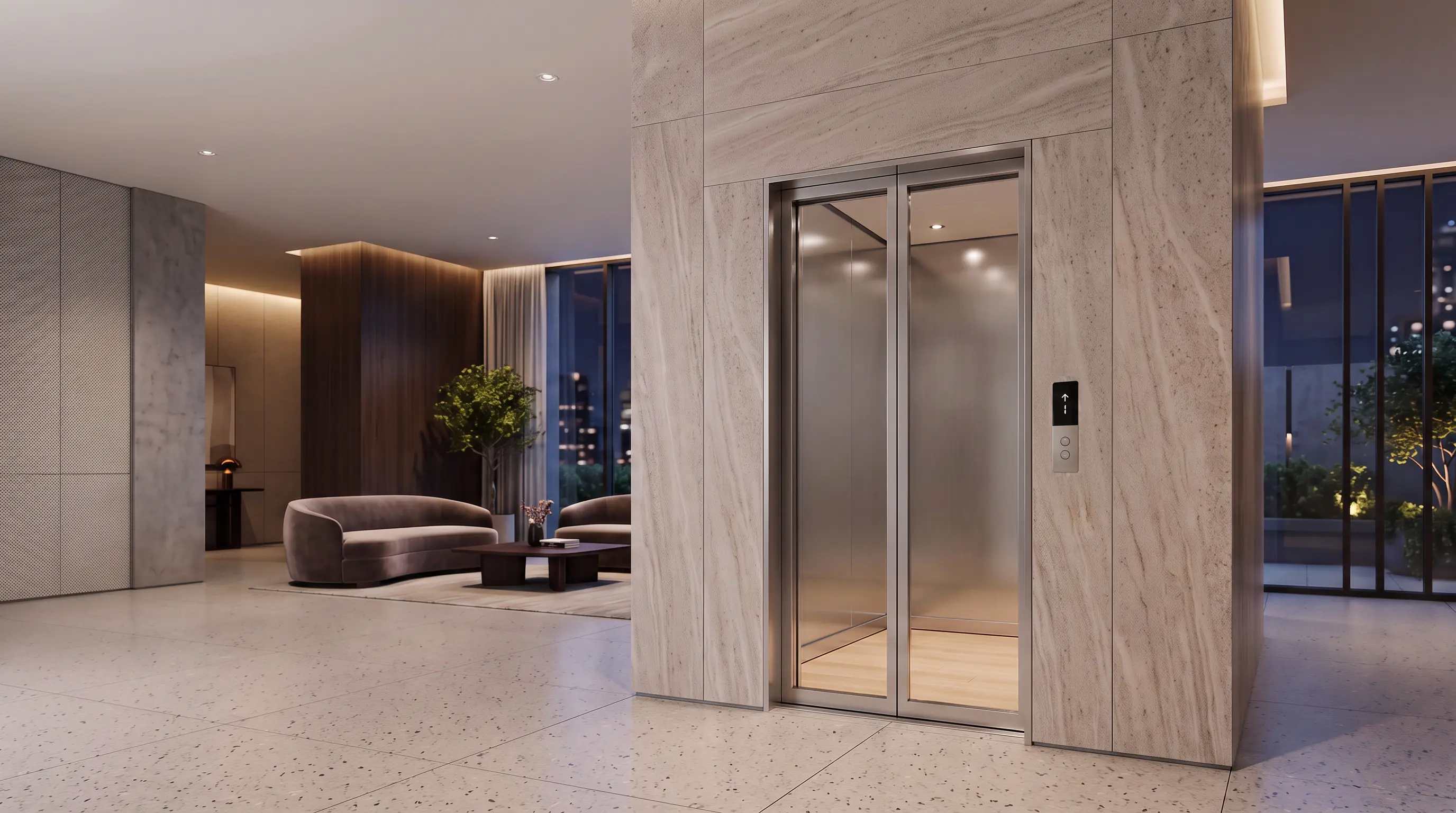

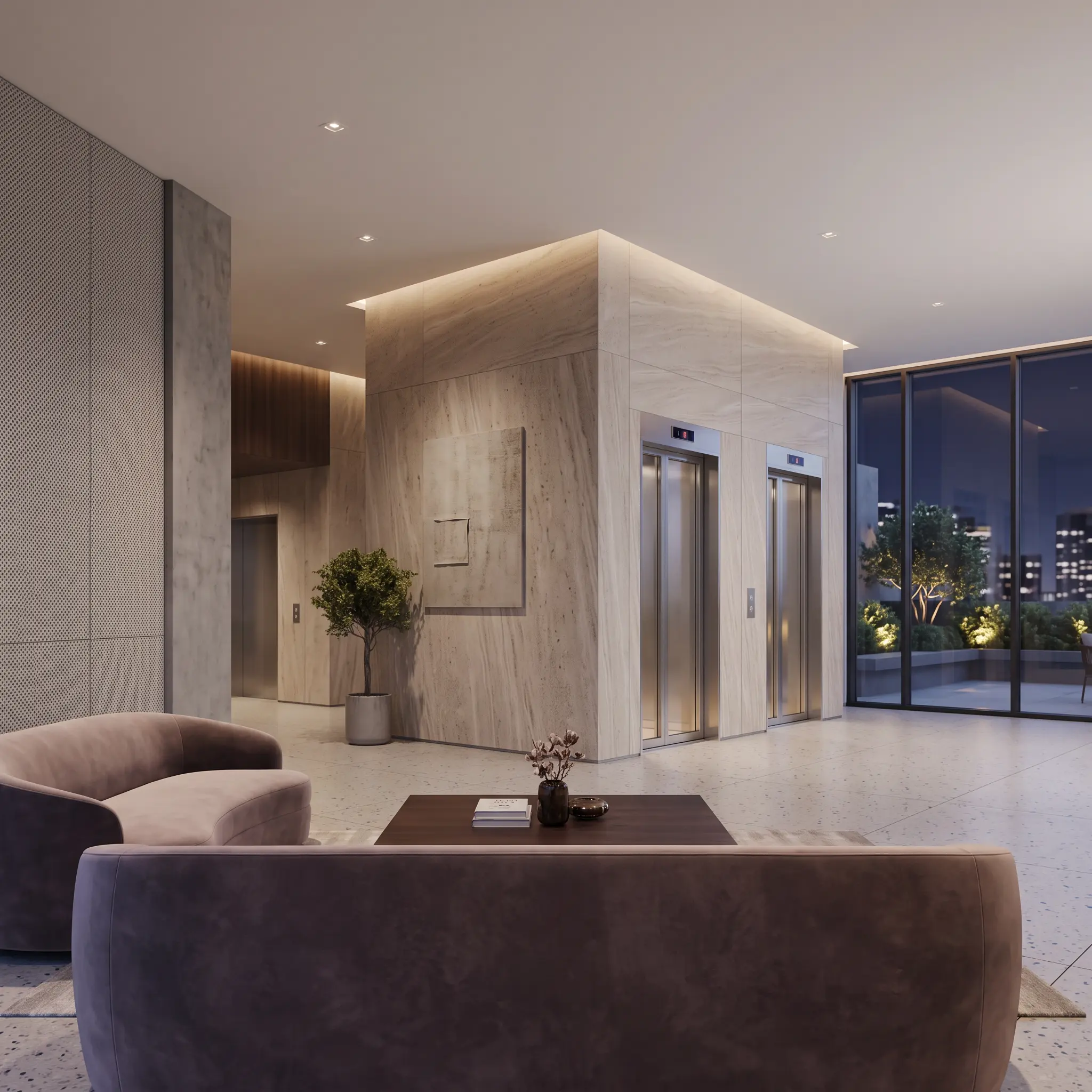

A refined gearless elevator combining performance,material quality and greater freedom in design.
Every building has its own character. Vertix is designed to give you greater freedom to shape the elevator around it. Withhigher-grade materials, increased performance capability and extensive design possibilities, Vertix brings togethertechnology and flexibility in one refined product.

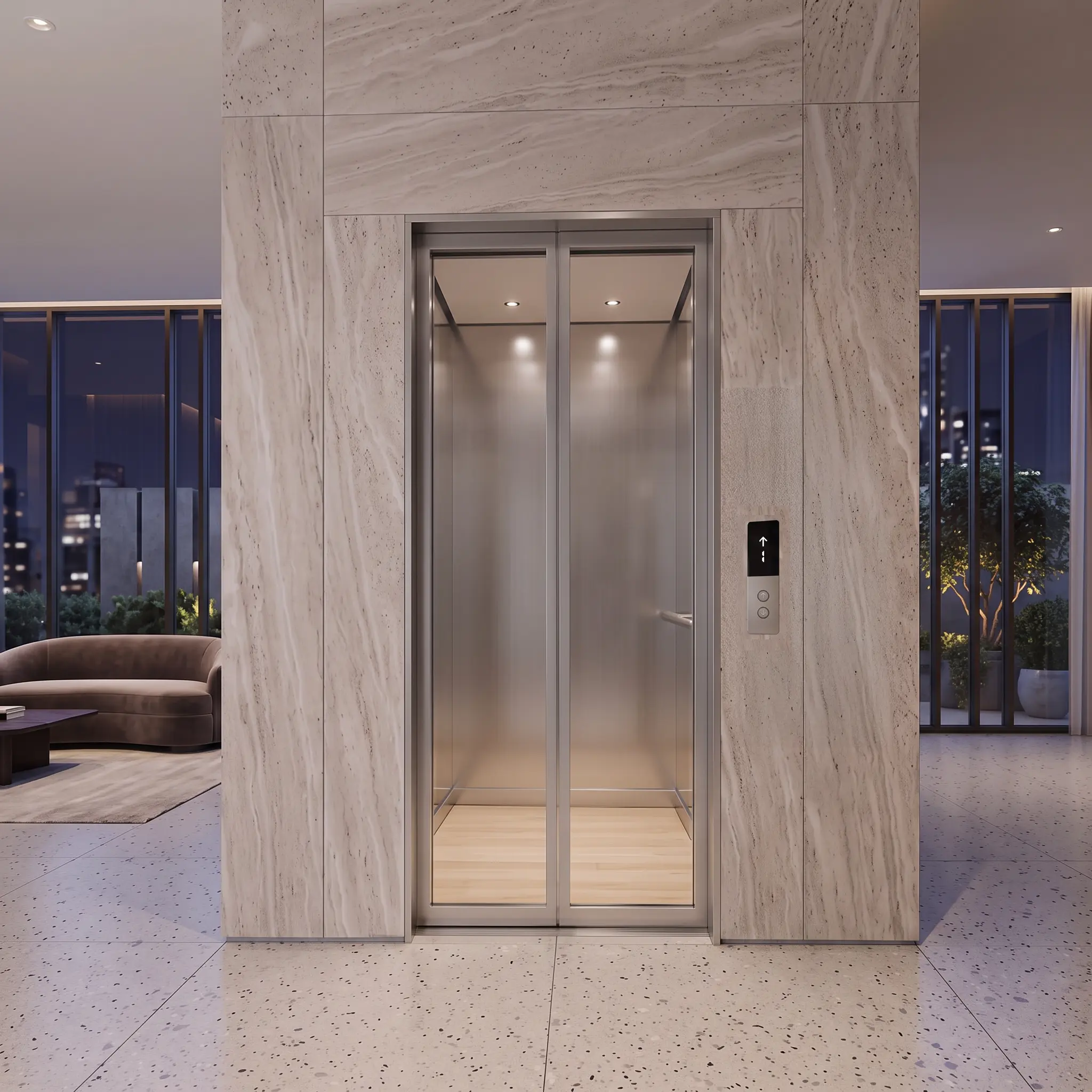

Polished material quality with a durable architectural finish.
Capacity for buildings requiring greater travel.
Higher speed capability for a more efficient journey.
More freedom across materials, finishes and interior details.
The difference is in how it feels
Controlled starts and stops designed to create a more refined journey.
Technology designed to reduce unwanted vibration and operational noise.
Accurate levelling and controlled movement from floor to floor.
Smooth starts and controlled movement.
Rotary encoder technology for accurate floor alignment.
Controlled acceleration and smooth stops.
Efficient and controlled door operation.
Designed to reduce vibration and improve ride comfort.
Vertix is designed to offer more possibilities — more freedom in finishes, moreflexibility in design, more capability for different types of buildings.

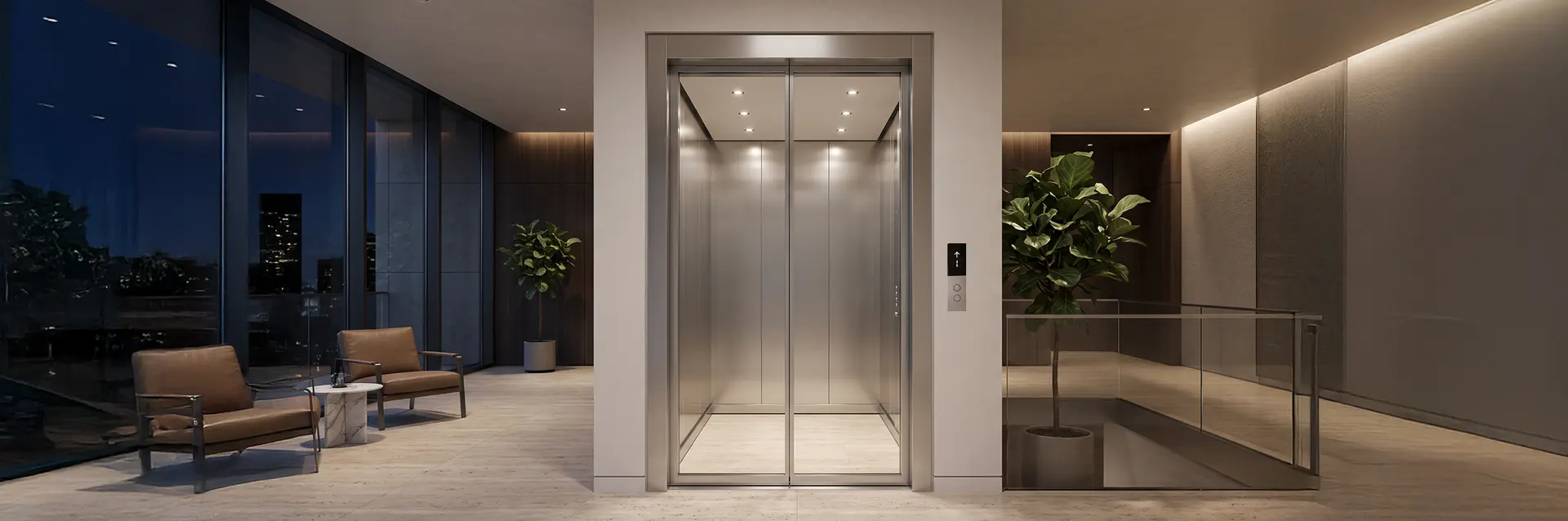

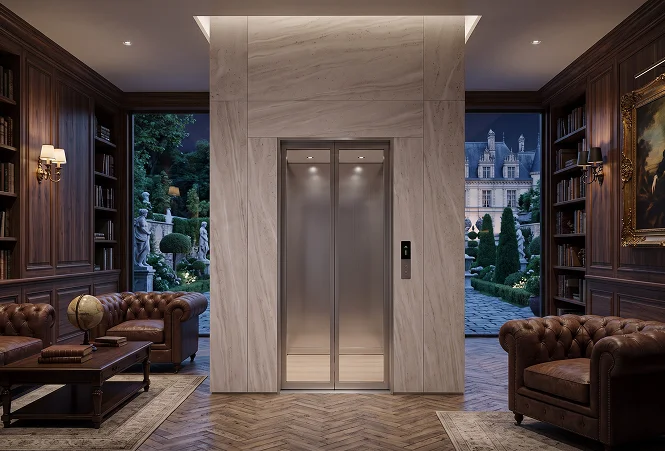

An architecture-first approach for premium residences where every detail is curated.
A refined gearless elevator solution designed around the requirements of modern low-rise buildings.
Machine Room-Less
6 – 15 Persons
Metres per second
Floors
Frequency Controlled
Selective
Clear opening
Standard clear height
| PERSONS | LOAD | CAR WIDTH | CAR DEPTH | HOISTWAY WIDTH | HOISTWAY DEPTH | DOOR WIDTH | DOOR HEIGHT |
|---|---|---|---|---|---|---|---|
| 6 | 408 kg | 1150 mm | 950 mm | 1600 mm | 1500 mm | 700 mm | 2000 mm |
| 8 | 544 kg | 1300 mm | 1100 mm | 1800 mm | 1600 mm | 800 mm | 2000 mm |
| 10 | 680 kg | 1350 mm | 1300 mm | 1800 mm | 1900 mm | 800 mm | 2000 mm |
| 13 | 884 kg | 1400 mm | 1500 mm | 2100 mm | 2000 mm | 900 mm | 2000 mm |
| 15 | 1020 kg | 1000 mm | 2400 mm | 1800 mm | 3000 mm | 1000 mm | 2000 mm |
| 20 | 1360 kg | 1300 mm | 2400 mm | 2000 mm | 3000 mm | 1000 mm | 2000 mm |
The specifications shown are standard reference configurations. Final dimensions and requirements may vary depending on the selected configuration and project requirements.
UCM Device provides rigorous protection against unintended car movement caused by brake failure or cable snapping.
A solenoid-controlled, bi-directional mechanism to secure occupants in the event of rope failure.
Twin crimper locking technology ensures absolute passenger safety in emergencies.
Advanced door system paired with light curtains, reversing movement upon any obstruction detection.
Specially designed fascia provides added protection against potential injuries.
Automatic rescue mechanism that swiftly returns the elevator to the nearest floor during power outages.
High-performance dual disc brakes ensure smooth, reliable deceleration and enhanced control.
Smart braking system that engages automatically to prevent unintended descent during motor power loss.
Three-stage terminal limit cutoff for safe response to overshoot or undershoot incidents.
An industry-first innovation enhancing motor stability and overall safety.
Dense infrared curtain creates an invisible safety net at the entrance, responding instantly to presence.
Specifically designed to secure children and passengers, ensuring enhanced occupant safety.
