ESCALATORS
TESC-50
An escalator engineered for high-trafficretail spaces and the movement of many.
TESC-50
MOVING MADE SIMPLE AND EASY.

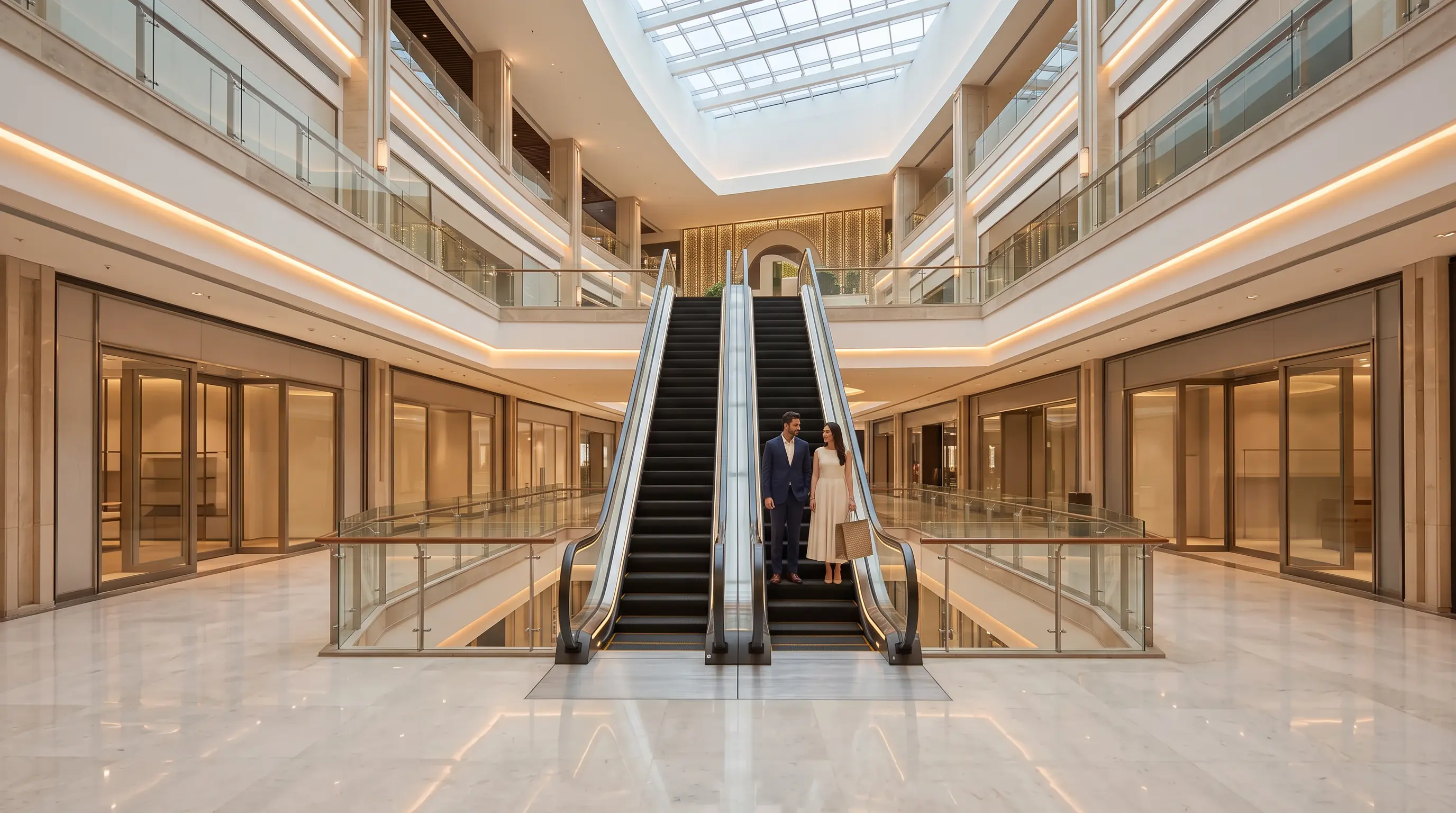

These escalators are designed for heavy usage like malls, airports, subway stations and railway stations where public flow is very high. They have a maximum operation capability of 20 hours daily and can go up to 27 metres rise height.
Chosen Steps
Stainless steel or aluminium steps as per the client's choice.
Ensure Safety
Safety protection standards as laid out by the EN Codes.
Auto Lubrication
Automatic lubrication system lubricates all kinds of driving components.
SPECIFICATIONS
| APPLICATION | INDOOR / OUTDOOR 20HRS DAILY | INDOOR / OUTDOOR 20HRS DAILY |
|---|---|---|
| Rise | <6m | <27m |
| Angle of Inclination | 35° | 30° |
| Step Width | 600 / 800 / 1000 | 600 / 800 / 1000 |
| Horizontal Steps | 2 / 2 | 2 / 2 or 3 / 3* |
| Speed | 0.5 m/s | 0.5 m/s |
| Main Power | 380V / 50Hz / 3Ph | 380V / 50Hz / 3Ph |
| Balustrade | Tempered Glass / SS Balustrade# | Tempered Glass / SS Balustrade# |
| Handrail Bracket | Stainless Steel | Stainless Steel |
| Handrail | Black | Black |
| Balustrade Height | 1000mm | 1000mm |
| Illumination | Lighting Under Upper & Lower Landing Steps | Lighting Under Upper & Lower Landing Steps |
| Inner & Outer Decking | Stainless Steel HL / Aluminium# | Stainless Steel HL / Aluminium#* |
* Only above the specified rise. # Available as per project requirement.
